S1200-24P2G1S-370
- Non-blocking switching architecture, and line-speed forwarding of all ports
- High-power PoE power supply, supporting full load 802.3af on all ports
Specifications
| Switching capacity | 10.8Gbps |
| MAC | 2K |
| Buffer size | 1.5Mb |
| PoE Port | 24 100M |
| Uplink RJ45 | 2 Gigabit |
| Uplink SFP | 1 Gigabit |
| Dimensions (mm) | 440x205x44 |
| PoE budget | ≤370W |
| PoE standard | 802.3af/at, maximum output of 30W per port |
| Power supply | Built-in AC: 100~240V, 50/60Hz |
| Working mode | VLAN mode, Default mode, CCTV mode |
| Environment requirements | perating temperature/humidity:0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing |
| Fan | Fanless |
| Lightning protection | 6KV |
Based on 0 reviews
Be the first to review “S1200-24P2G1S-370”
Related products
-
Switches

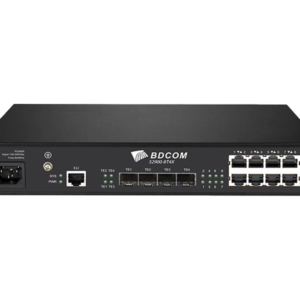

S2900-8T4X
-
