APC-4-C6VT

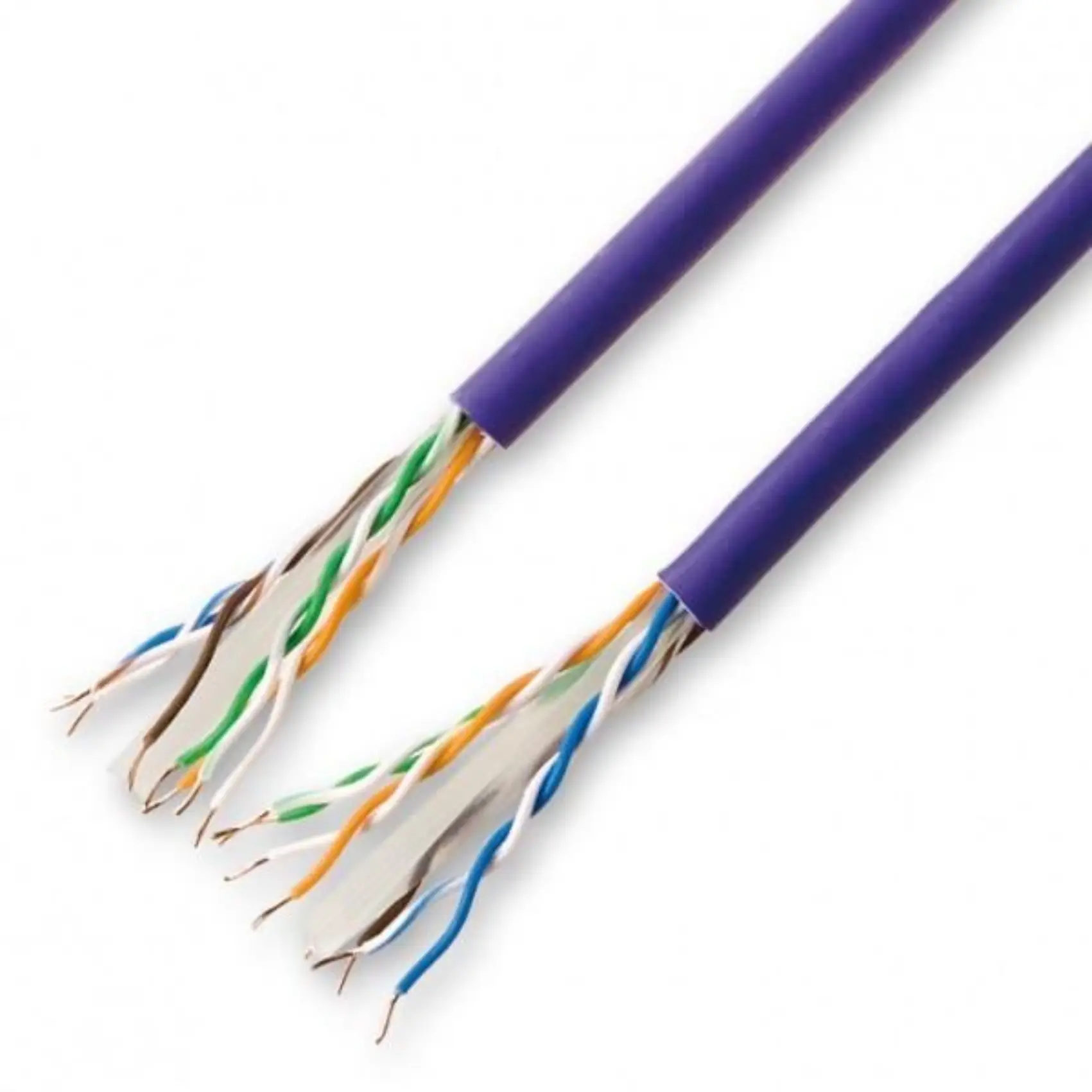

Cat6 Unshielded (UTP) 4 Pair 23 AWG Solid PVC 305m Cable,Violet
Cat 6 UTP Data Cable Consists of 4 Pair PE Insulated 23 AWG Solid Annealed Bare Copper Conductors, PE Cross Separator,rip cord and PVC outer Sheat. These structure cable suitable for 10Gig abyte Ethernet Applications and compatible with all known connection Systems, Ideal for high performance workstation applications including voice/data systems, Digital video, Broadb and and Voice over internet protocol etc.
| Bending radius(min) | 4 x overall diameter |
| Color | Violet |
| Package Type | Pullout Box |
| Resistance Properties | Flame Retardant |
| Part Features | Third party tested, Tested beyond the standards |
| Temperature Range | -20 °C up to + 60 °C |
| Insulation Diameter (mm) | 1.0 2 ± 0.03 |
| Environment | Indoor |
| Number of Pairs | 4 |
| Conductor Gauge (AWG) | 23 |
| Conductor Material | Copper |
| Overall Length (m) | 305 |
| Cable Construction | U/UTP |
| Cable Category | Category 6 |
| Sheath | PVC |
| RoHS Compliancy Status | Compliant |
| Overall Length (ft.) | 1000 |
| Performance Level | Category 6 |
| Available packaging | 305m |
| Breaking strength(max) | 400 N |
Based on 0 reviews
Be the first to review “APC-4-C6VT”
Related products
-
Cables, Category 6 Cable, Twisted Pair Cables
APC-4-C6VT5
Cat6 Unshielded (UTP) 4 Pair 23 AWG Solid PVC 500m Cable,Violet
Cat 6 UTP Data Cable Consists of 4 Pair PE Insulated 23 AWG Solid Annealed Bare Copper Conductors, PE Cross Separator,rip cord and PVC outer Sheat. These structure cable suitable for 10Gig abyte Ethernet Applications and compatible with all known connection Systems, Ideal for high performance workstation applications including voice/data systems, Digital video, Broadb and and Voice over internet protocol etc.
SKU: n/a -
-
Cables, Category 6 Cable, Twisted Pair Cables
APCZH-4-C6GY
Cat6 Unshielded (UTP) 4 Pair 23 AWG LSZH 305m Cable,Grey
Cat 6 UTP Data Cable Consists of 4 Pair PE Insulated 23AWG Solid Annealed Bare Copper Conductors,PE Cross Separator Rip Cord, Low Smoke Zero Halogen (LSZH) Compound Outer Sheath.These structure cable suitable for 10Gigabyte Ethernet Applications and compatible with all known connection Systems,Ideal for high per formance workstation applications including voice/data systems, Digital video,Broadband and Voice over internet protocol etc.
SKU: n/a -
Cables, Category 6a Cable, Twisted Pair Cables
APCZH-4-C6AFFV
Cat6A (F/FTP) 4 Pair 23 AWG LSZH 305m Cable,Violet
The cable Structured by 23AWG Solid Annealed Bare Copper Conductor, Foam polyethylene Insulated twisted Pair, 4Pair Individually Screened by aluminum foil (Mylar tape), ATC Drain wire, Overall Mylar tape then Outer Jacket.
Features
- Complied to TIA/EIA 568 C.2 , ISO/IEC 11801 2nd ed. & IEC 61156 -6 Category class 6a Cable Performance Specified up to 500 MHz
- Provided Drain wire for grounding.
- Individually Screened pairs.
- Double -Shielded (F/FTP) Cable.
- CE & RoHS Compliant.
- Superior shielding performance.
- Meet Alien Cross talk immunity Performance.
SKU: n/a
