IES200-V25-2S8T

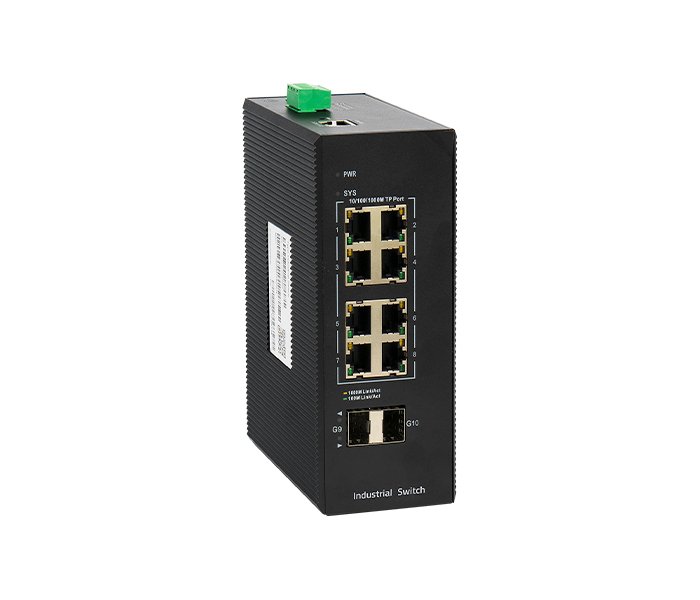

IES200-V25-2S8T - Image 2

IES200-V25-2S8T

Compare

IES200-V25 series, based on a new generation of high-performance hardware and BDROS platform of BDCOM’s independent intellectual property rights, supports ACL, QinQ, QoS and static routing.

Features Point

  • The reliable industrial design of IES200-V25 series such as electromagnetic compatibility, anti-vibration and anti-shock capability, and IP40 protection, can be widely used in energy, transportation, industrial production, environmental protection, military industries.

Specifications

Gigabit Interface
RJ45 8
SFP 2
Console (RJ45) 1
Backplane (Gbps) 56
Forwarding rate (Mpps) 15
Chassis
Dimensions (WxDxH)(mm) 165x130x65
Weight (KG)(empty) 1.04
Package
Dimensions (WxDxH)(mm) 242*207*86
Weight(KG) 1.5
Power consumption
no-load <12W
full-load 18W
Power supply Dual DC 12~ 55V
Total output BTU (1000BTU/H=293W) 61.43
MTBF(H) >800,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 128
MAC 8K
Buffer size(Mb) 4
Jumbo frame 9K
Total SVI 10
