S1500-16P2ES-H

S1500-16P2ES-H

Compare

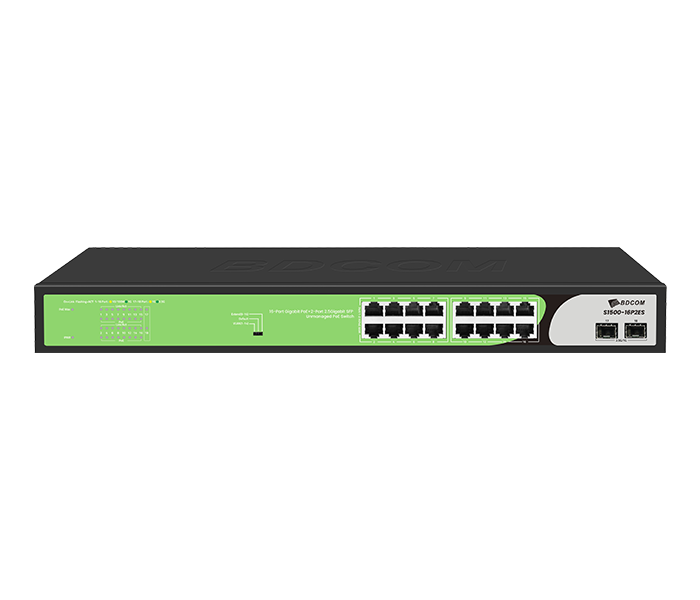

BDCOM S1500-P Series is a multi-functional unmanaged full-gigabit PoE switch with large buffer capacity. The product is primarily applied in access layer of CCTV and WLAN.

Features Point
  • Non-blocking switching architecture, and line-speed forwarding of all ports
  • Large buffer design, ensures smooth playback of high-definition videos
  • Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control
  • Multi-functional DIP modes to meet various networking requirements

Specifications

Switching capacity 42Gbps
MAC 16K
Buffer size 8.4Mbit
Gigabit PoE port
PoE++ 2(60W)
PoE+ 14(30W)
Uplink SFP 2-Port 2.5G
Dimensions (mm) 440x204x44
PoE budget ≤180W
Power supply Built-in AC: 100~240V, 50/60Hz
Working mode VLAN mode, Default mode, CCTV mode
Environment requirements Operating temperature/humidity:0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing
Fan Fanless
Lightning protection 4KV
