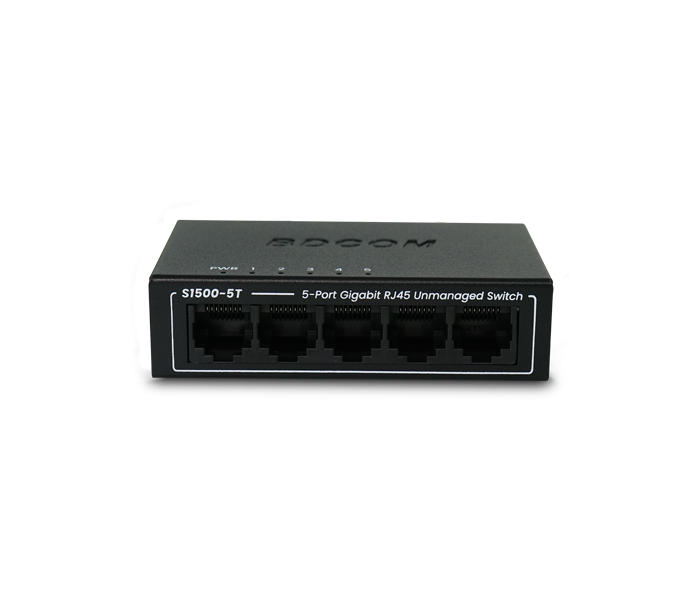

S1500-5T
- Non-blocking switching architecture, and line-speed forwarding of all ports
- Large buffer design, ensures smooth playback of high-definition videos
- Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control
- Multi-functional DIP modes to meet various networking requirements
Specifications
| Switching capacity | 10Gbps |
| MAC | 2K |
| Buffer size | 3Mb |
| Port | 5-Port Gigabit RJ45 |
| Dimensions (mm) | 87x54x23 |
| Power supply | DC 5V |
| Working mode | Default |
| Environment requirements | Operating temperature/humidity: 0°C-50°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing |
| Fan | Fanless |
| Lightning protection | 2KV |
