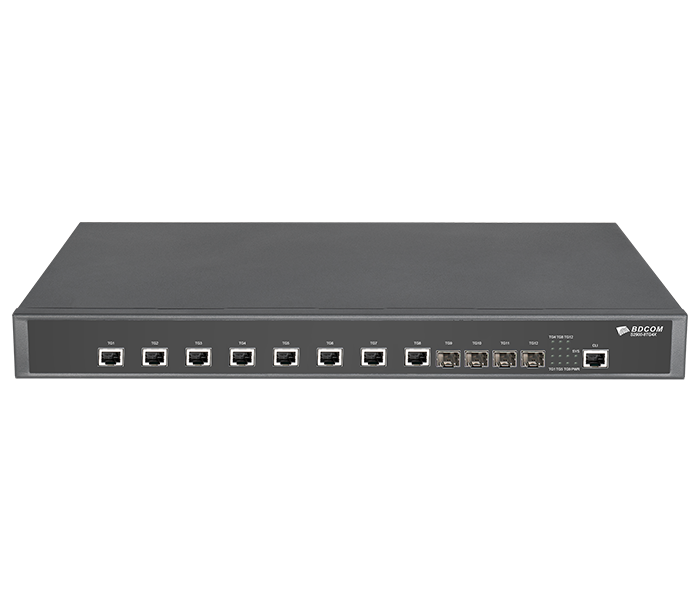

S2900-8TG4X
-
VLAN
- 4K Active VLAN, QinQ & Selective QinQ, GVRP, Private VLAN, Voice-VLAN
-
Spanning Tree
- 802.1D (STP), 802.1W (RSTP) and 802.1S (MSTP)
BPDU guard, root guard and loopback guard
-
Multicast
- IGMP v1/v2/v3, IGMP Snooping, IGMP Fast Leave, MVR, IGMP filter
PIM-SM/SSM(2T10X/8TG4X)
-
IP
- Static route,RIPv1/v2, OSPFv2
BGP(2T10X/8TG4X)
IPv4/v6 dual stack
ECMP
-
IPv6
- ICMPv6, DHCPv6, ACLv6 and Ipv6 Telnet
IPv6 neighbor discovery, Path MTU discovery
MLD v1/2, MLD snooping
IPv6 Static Routing, RIPng, OSPFv3
Manual tunnel, ISATAP tunnel, 6 to 4 tunnel(2T10X/8TG4X)
-
Certification
- CE, FCC, ROHS
-
QoS
- CAR, HQoS, MAC/IP/TCP/UDP/VLAN/ COS/ DSCP/ TOS based QoS, 802.1P/ DSCP priority relabeling, SP, WRR, and “SP+WRR”, Tail-Drop, WRED, flow monitoring and traffic shaping
-
Security
- Port isolation, Port security, and “IP+MAC+port” binding, MAC sticky
DHCP Snooping and option 82, DAI & IP source guard, PPPoE+,
IEEE 802.1x, Radius and TACACS+
L2/L3/L4 ACL flow identification and filtrationAnti-attack from DDoS, TCP’s SYN Flood, UDP Flood, etc. Broadcast/multicast/unknown unicast storm-control
MD5, SHA-256, RSA-1024, AES256, etc.
-
DHCP
- DHCP server/relay/client
DHCP snooping/option82
-
Reliability
- Static/LACP link aggregation, Interface backup
EAPS and ERPS
ISSU uninterrupted system u pgrade
BVSS, ups to 16-units per stack
VRRP
UDLD
-
Management
- Console, Telnet, SSH v1/2, HTTP, HTTPS, SNMP v1/v2/v3, RMON
TFTP, FTP, SFTP
NTP
ZTP
SPAN, RSPAN
Dying gasp*
Syslog
-
Environment
- Operating temperature/humidity: 0 -50℃ ,10%-90% non-condensing
Storage temperature/humidity: -20 -70℃ , 5%-95% non-condensing
-
Accessories
- Power cord, rackmount kits, console cable
Specifications
| Gigabit Interface | |
| RJ45 | / |
| SFP | / |
| 10GE/GE Interface | 8 RJ45 + 4 SFP+ |
| Console(RJ45) | 1 |
| Backplane(Gbps) | 240 |
| Forwarding rate (Mpps with 64 bytes) | 180 |
| Chassis | |
| Dimensions (WxDxH)(mm) | 440X280X44 |
| Weight (KG)(empty) | 3.5 |
| Package | |
| Dimensions (WxDxH)(mm) | 576x448x94 |
| Weight(KG) | 4.5 |
| Power consumption | |
| no-load | < 22W |
| full-load | 35W |
| Power supply | |
| AC: 100V-240V DC: 36-72V | 45W |
| Total output BTU (1000BTU/H=293W) | 153.58 |
| Fan number | 2 |
| Noise@25°C（dBA) | 45 |
| MTBF(H) | ＞200,000 |
| Forwarding mode | Store-forward |
| Flash (MB) | 16 |
| DRAM (MB) | 512 |
| MAC | 32K |
| Buffer size(MB) | 2 |
| Interface vlan | 1023 |
| Routing table | 12K |
| Jumbo frame | 9K |
