Outdoor AP
WAP2100-I630-D
- Powerful Automatic Network Optimization
- Comprehensive Security Features
- User-friendly Design Details
- Rich Manageable Features
Specifications
| Weight(KG) | 1.6 |

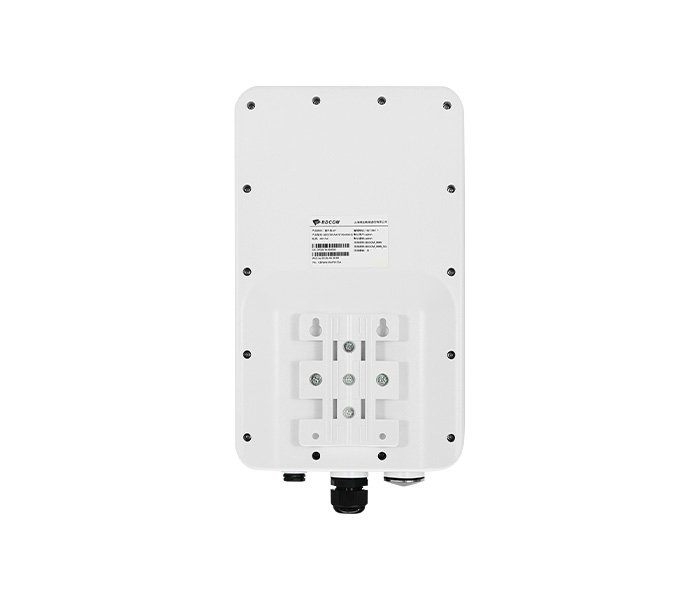

| Mounting method | Pole-mount/Wall-mount |
| Dimensions(mm) | 304x180x88 |
| Ethernet port | 1 GE WAN port
(PoE supported) |
| Local power supply | PoE input or 12V DC |
| PoE power supply | 802.3at |
| Antenna type | Built-in omnidirectional |
| Antenna gain | 12dBi |
| Operating frequency bands | 802.11a/n/ac : 5.725GHz-5.850GHz ; 5.15-5.35GHz
802.11 b/g/n/ac: 2.4GHz-2.483GHz |
| Wi-Fi data rate | 2.4G: 2*2 11ax 576Mbps
5G: 2*2 11ax 2400Mbps |
| Maximum total transmitting power
(The actual transmission power is subject to relevant regulations.) |
2.4 GHz: 27 dBm
(combined power) 5 GHz: 27 dBm (combined power) |
| Modulation technology | OFDM:
BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps MIMO-OFDM(11n): MCS 0-15 MIMO-OFDM(11ac): MCS 0-9 MIMO-OFDM(11ax): MCS 0-11 |
| Modulation mode | 11b: DSS:
CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11a/g: OFDM: 64QAM@48/54Mbps,16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM 11ac: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Power adjustment | Automatic |
| Reset | Supported |
| Status LED | SYS, WLAN, Link/Act |
| Operating temperature/ Storage temperature | -35℃ ~55℃ /-40℃ ~70℃ |
| Operating humidity / Storage humidity | 10%~95% (non-condensing) |
| Protection class | IP67 |
| Power consumption | <18W |
| MTBF | >250000H |
