Ceiling-mounted AP
WAP2100-T512
- High-performance Wireless Solutions
- Powerful Automatic Network Optimization
- Comprehensive Security Features
- User-friendly Design Details
Specifications
| Weight | 400(g) |
| Mounting method | Ceiling |
| Dimensions | 168x168x32(mm)
(excluding accessories) |

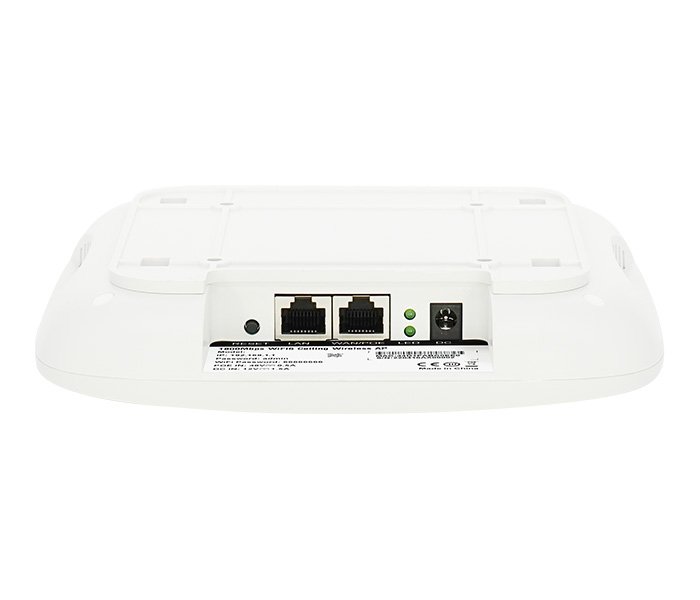

| Ethernet port | 1 GE WAN port (POE)
1 GE LAN port |
| Local power supply | POE input or 12V DC |
| PoE power supply | 802.3at |
| Antenna type | Built-in, Omni-direction |
| Antenna gain | 2.4G: 3dBi
5G: 3dBi |
| Operating frequency bands | |
| 802.11a/n/ac | 5.725GHz-5.850GHz ; 5.15~5.35GHz |
| 802.11b/g/n/ac | 2.4GHz-2.483GHz |
| Wi-Fi data rate | 2.4G: 2*2 11n 400Mbps
5G: 2*2 11ac 867Mbps |
| Maximum total transmitting power (The actual transmission power is subject to relevant regulations.) | |
| 2.4 GHz | 23 dBm (combined power) |
| 5 GHz | 23 dBm (combined power) |
| Modulation technology | OFDM :
BPSK@6/9Mbps, QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS : DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps MIMO-OFDM (11n): MCS 0-15 MIMO-OFDM (11ac): MCS 0-9 |
| Modulation mode | 11b: DSS:
CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11a/g: OFDM: 64QAM@48/54Mbps,16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11nMIMO-OFDM: BPSK,QPSK,16QAM, 64QAM 11ac/ac wave2: MIMO-OFDM: BPSK,QPSK,16QAM,64QAM,256QAM |
| Power adjustment | Automatic |
| Reset | Supported |
| Status LED | on / Blinking/ error |
| Operating temperature / Storage temperature | -10ºC~40ºC/-40ºC~70ºC |
| Operating humidity / Storage humidity | 10%~95% (non-condensing) |
| Protection class | IP41 |
| Power consumption | < 12W |
| MTBF | >250000H |
