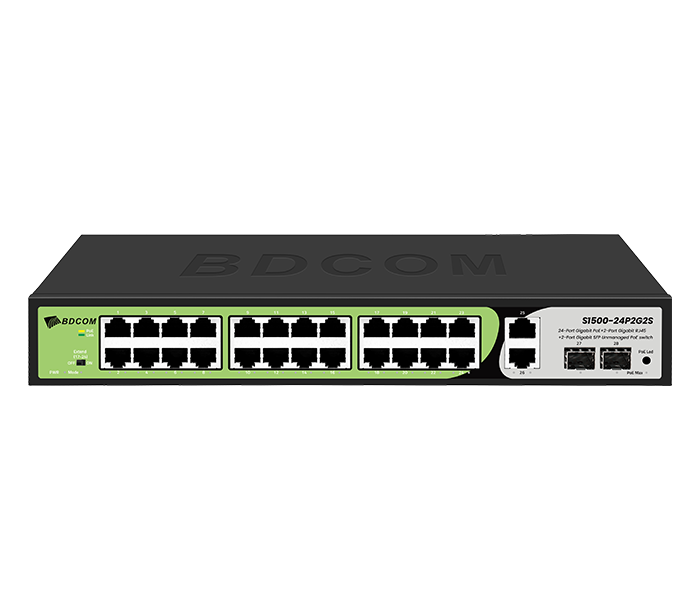

S1500-24P2G2S
- Non-blocking switching architecture, and line-speed forwarding of all ports
- Large buffer design, ensures smooth playback of high-definition videos
- Supports IEEE802.3x full-duplex flow control and Backpressure half-duplex flow control
Specifications
| Switching capacity | 56Gbps |
| MAC | 2K |
| Buffer size | 4Mb |
| PoE Port | 24 Gigabit |
| Uplink RJ45 | 2 Gigabit |
| Uplink SFP | 2 Gigabit |
| Dimensions (mm) | 320x207x45 |
| PoE budget | ≤285W |
| PoE standard | 802.3af/at, maximum output of 30W per port |
| Power supply | Built-in AC: 100~240V, 50/60Hz |
| Working mode | Default mode, CCTV mode (supports watchdog) |
| Environment requirements | Operating temperature/humidity:-10°C-45°C, 10%-90% non-condensing
Storage temperature/humidity: -40°C-70°C, 5%-95% non-condensing |
| Fan | Fanless |
| Lightning protection | 4KV |
