S2500-24P4S

S2500-24P4S

Compare

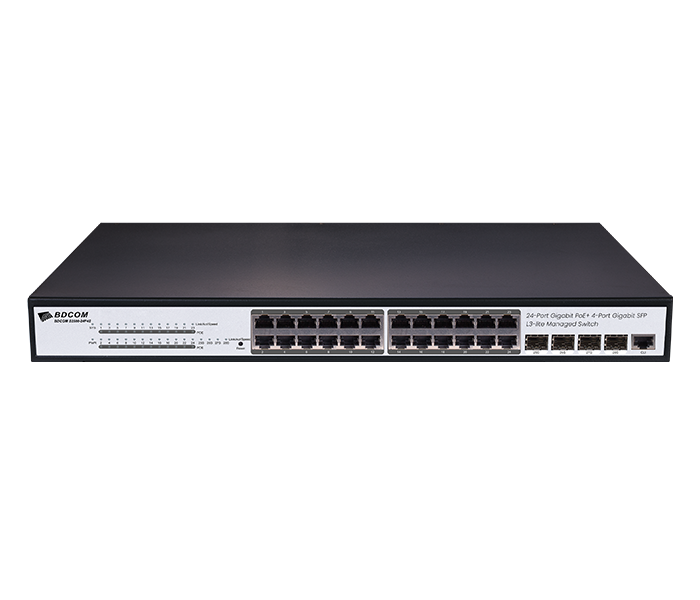

BDCOM S2500-P Series  is  a  new-generation intelligent  PoE access  switch  designed  for carrier’s  IP  MAN  and  enterprise  networks. Based on the new-generation high-performance hardware  and  BDROS  platform,  it  supports functions such as ACL, QinQ and QoS. Its simple management  mode  and  flexible  installation can  meet  the  requirement  of  any  complicat-ed scenarios.

Features Point
  • ·Supports Up to 24-Port Gigabit PoE+ and 4-Port Gigabit SFP Uplink
  • ·Advanced Hardware Architecture and Industry-leading  Port Density
  • ·Carrier-Level High Reliability, Layer-3 Routing Functions
  • ·Varied Service Characteristics Versatile IPv6 Solution Complete Security Mechanism

Specifications

Interface 24-Port Gigabit PoE+,

4-Port Gigabit SFP
Console 1 RJ45 port, 1 RST button
Backplane 56 Gbps
Forwarding rate 42 Mpps
Chassis
Dimensions (WxDxH)(mm) 440x210x44
Weight(KG)(empty) 2.2
Package
Dimensions (WxDxH)(mm) 555x295x88
Weight(KG) 3.3
Power consumption
no-load < 17W
full-load 393.5W
Power supply
AC: 100V-240V, 50/60Hz 400W
POE power budget 370 W
Total output BTU (1000BTU/H=293W) 1365.19
Fan number 2
Noise@25°C（dBA) 45
MTBF(H) ＞200,000
Forwarding mode Store-forward
Flash (MB) 16
DRAM (MB) 128
MAC 8K
Buffer size(Mb) 4.1
Jumbo frame 9K
Total SVI 10
