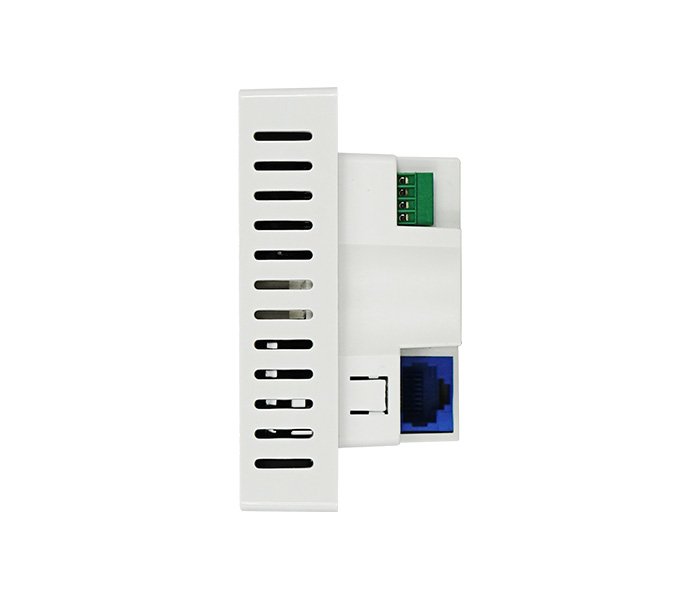

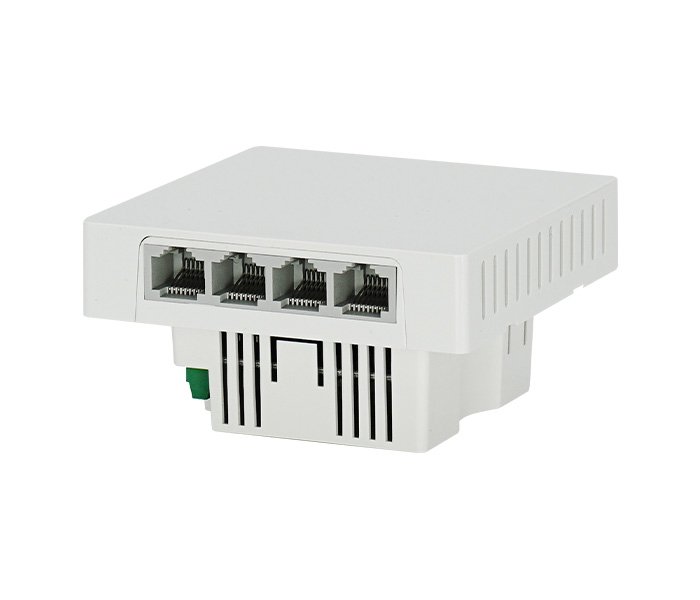

Wall-mounted AP
WAP2100-W618
- High-performance Wireless Solutions
- User-friendly Design Details
- Comprehensive Security Features
Specifications
| Mounting method | In-wall |
| Dimensions (HxWxD) | 86×86×45mm |
| Ethernet port | 1 GE WAN port (POE supported)
3 GE LAN ports 1 RJ11 port |
| PoE power supply | POE input |
| Antenna type | Built-in omnidirectional |
| Antenna gain | 2.4G: 2.5dBi
5G: 2.5dBi |
| Operating frequency bands | 2.4GHz and 5GHz |
| Wi-Fi data rate | 2.4G: 2*2 11ax 573Mbps
5G: 2*2 11ax 1200Mbps |
| Maximum transmit power | 2.4 GHz: 18 dBm (combined power)
5 GHz: 18 dBm (combined power) The actual transmit power depends on local laws and regulations. |
| Modulation | OFDM : BPSK@6/9Mbps,
QPSK@12/18Mbps, 16-QAM@24Mbps, 64-QAM@48/54Mbps DSSS: DBPSK@1Mbps, DQPSK@2Mbps, CCK@5.5/11Mbps MIMO-OFDM (11n): MCS 0-15 MIMO-OFDM (11ac): MCS 0-9 MIMO-OFDM (11ax): MCS 0-11 |
| Modulation mode | 11b:
DSS: CCK@5.5/11Mbps, DQPSK@2Mbps, DBPSK@1Mbps 11a/g: OFDM: 64QAM@48/54Mbps, 16QAM@24Mbps, QPSK@12/18Mbps, BPSK@6/9Mbps 11n: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM 11ac/ac wave2: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM 11ax: MIMO-OFDM: BPSK, QPSK, 16QAM, 64QAM, 256QAM, 1024QAM |
| Power adjustment | Automatic |
| Reset | Supported |
| Status LED | Solid on / Blinking/ Network error
(The LED can be turned off using software.) |
| Operating temperature/ Storage temperature | 0ºC~50ºC |
| Operating humidity | 10%~95% (non-condensation) |
| Protection degree | IP41 |
| Power consumption | < 10W |
| MTBF | > 250000H |
| 11ax supported | |
| Working frequency bands | 2.4GHz+5GHz |
| A-MPDU | Supported |
| A-MSDU | Supported |
| MU-MIMO | Supported |
| OFDMA | Supported |
| Transmit Beamforming (TxBF) | Supported |
| Maximum Likelihood Demodulation (MLD) | Supported |
| Maximum Ratio Combining (MRC) | Supported |
| Space-Time Block Coding (STBC) | Supported |
| Low Density Parity Check (LDPC) | Supported |
| 11ac supported | |
| Working frequency bands | 5GHz |
| A-MPDU | Supported |
| A-MSDU | Supported |
| Transmit Beamforming (TxBF) | Supported |
| Maximum Likelihood Demodulation (MLD) | Supported |
| Maximum Ratio Combining (MRC) | Supported |
| Space-Time Block Coding (STBC) | Supported |
| Low Density Parity Check (LDPC) | Supported |
| 11n supported | |
| Working frequency bands | 2.4GHz+5GHz |
| A-MPDU | Supported |
| Transmit Beamforming (TxBF) | Supported |
| Maximum Likelihood Demodulation (MLD) | Supported |
| Maximum Ratio Combining (MRC) | Supported |
| Space-Time Block Coding (STBC) | Supported |
| Low Density Parity Check (LDPC) | Supported |
| WLAN basics | |
| Maximum users per radio | 128 |
| WPAPSK/WPA2PSK/WPA3 | Supported |
| RTS/CTS | Supported |
| Guest network | Supported |
| Smart device unique SSID | Supported |
| Automatic link fault detection and recovery | Supported |
| Advanced networking features | |
| Automatic network-wide channel adjustment | 4 |
| Automatic network-wide bandwidth adjustment | Supported |
| 802.11i | Supported |
| Encryption | AES, WPA3 |
| Automatic network-wide power adjustment | Supported |
| Security policy | |
| Authentication | MAC Address/PSK |
| User isolation | 1.L ayer-2 user isolation
2.SSID-based user isolation |
| Forwarding security | Packet filtering, MAC
address filtering, broadcast storm suppression |
| SSID-VLAN binding | Supported |
| 802.11w | Supported |
| Layer-2 and layer-3 features | |
| IP address configuration | Static IP address, DHCP, and PPPoE |
| Local forwarding | Local forwarding based on SSID+VLAN |
| Multicast | IGMP Snooping |
| Advanced Wi-Fi features | |
| 802.11e | WMM |
| Priority | Ethernet port 802.1P identification and marking
Mapping from wireless priorities to wired priorities |
| Ai QoS | Mapping based on application traffic and air interface queue |
| Advanced Wi-Fi features | |
| Automatic channel/bandwidth/power selection | Supported |
| Load balancinga | Based on traffic / number of users / bands / air interface load |
| 802.11k/802.11v/802.11r | Supported |
| AP Steering | Supported |
| Band Steering | Supported |
| Automatic power control / Packet-by-packet power control | Supported |
| Multicast enhancement | Multicast-to-unicast (IPv4) |
| Installation, management and maintenance | |
| Wizard-guided installation with app | Supported |
| Network pre-deployment | Supported |
| Local management with app/Remote management | Supported |
| Cloud AC management | Supported |
| Remote maintenance | Supported |
