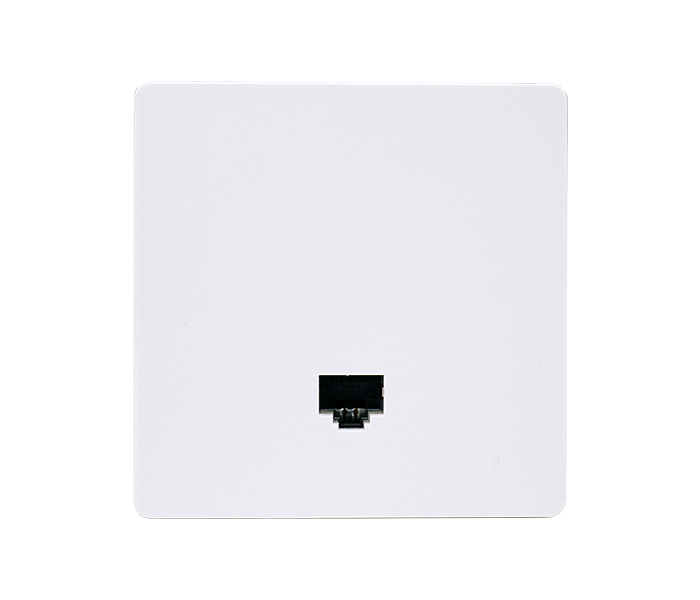

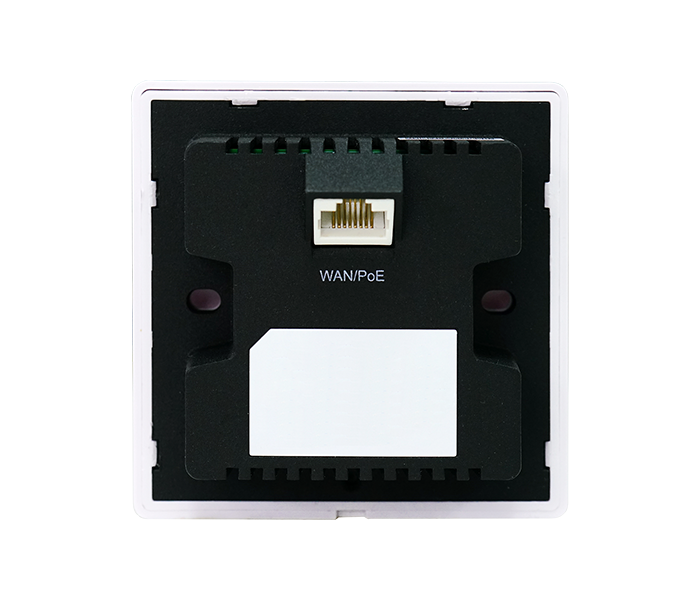

Wall-mounted AP
WAP2100-W630-V2
- 802.3af/at standard POE power input
- Energy efficiency design
- 802.11a/b/g/n/ac/wave2/ax, up to 30 SSID
- Max. 128 concurrent users
- FIT and FAT AP mode
- SNS, SMS and white-list login authentication
- Universal network management
- Cloud platform
- Portal 2.0
Specifications
| Ethernet port | 1-port Gigabit WAN (PoE)
1-port Gigabit LAN |
| Operating frequency | 2.4GHz/5GHz |
| Wireless protocol | 802.11 a/b/g/n/ac/wave2/ax |
| Wireless MIMO | 2×2/2×2 |
| Air interface rate | 3000Mbps |
| RF Power | 16dBm |
| Coverage areas | Recommended 10 meters, a single room |
| Recommended concurrent users | 80 |
| Other interface | 1 RST switch |
| Power supply | PoE input |
| Power consumption | Max 13W |
| Deployment method | 86*86mm in-wall |
| Dimensions (WxDxH) | 86×86×43mm |
| Weight | 250g |
| Operating temperature | 0ºC~50ºC |
| Operating humidity | 10%~95% (non-condensation) |
| Protection class | IP41 |
